Vertical Extension Brackets

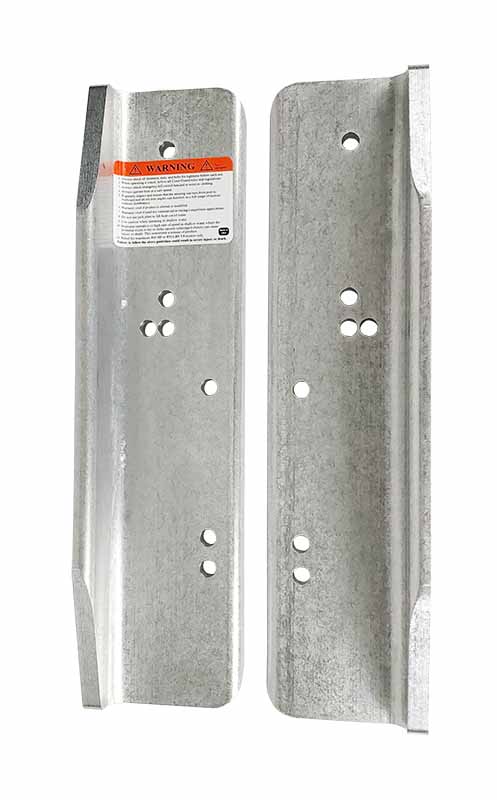

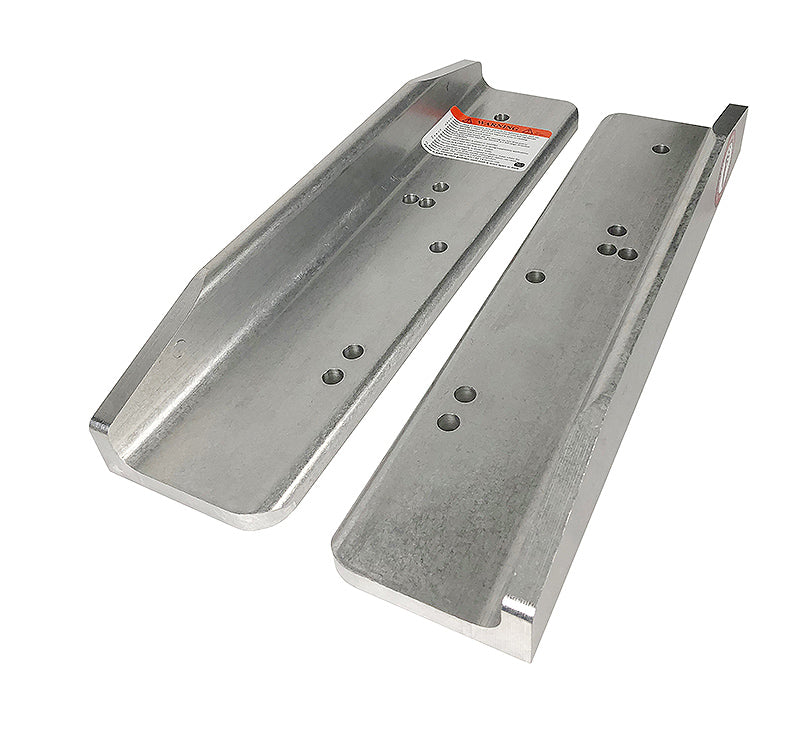

Bob's Machine Shop Vertical Extension Brackets

These vertical extension brackets provide a listed 5-inch engine-height increase with 0.5 inch of additional setback. Confirm the exact bracket model and whether this mounting arrangement is appropriate for your boat and outboard before ordering.

Product Details

• Brand: Bob's Machine Shop
• Product type: Vertical extension brackets
• Listed engine-height increase: 5 inches
• Listed additional setback: 0.5 inch
• Listed horsepower reference: Up to 550 HP, including referenced Verado applications; verify the supplied model's exact horsepower and engine-weight limits
• Listed application reference: XL-shaft engines where a higher mounting position is required; shaft designation alone does not establish suitability
• Listed exclusion: Not compatible with Yamaha 425 due to its wider engine mounting bracket

Fitment & Ordering

Verify the exact engine model, shaft length, mounting bolt pattern, bracket dimensions, engine weight and horsepower, transom capacity and steering and tilt clearances with the boat, engine and bracket manufacturers. Confirm that the resulting engine height meets the engine manufacturer's operating requirements rather than assuming a 5-inch increase is correct for every XL-shaft installation. Confirm package contents, bracket quantity and required mounting hardware before purchase. Follow the manufacturer's installation instructions and have a qualified marine installer assess the setup. Contact C and O Marine Parts with your boat, engine and existing mounting measurements for help confirming the correct configuration.
