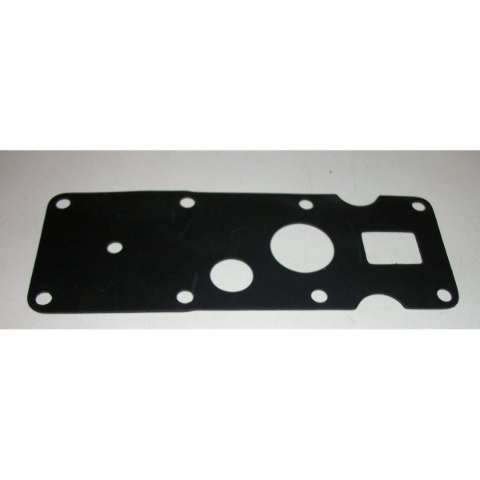

OMC Evinrude Johnson Fuel Tank Diaphragm – 302563

This diaphragm is listed under OMC Evinrude Johnson part number 302563 for a fuel tank application. Match the part number to the exact tank assembly being serviced before ordering.

Product Details

  • Part number: 302563
  • Part type: Fuel tank diaphragm
  • Listed application reference: G4; confirm this designation against your tank's parts information
  • Configuration check: Match diaphragm dimensions, profile, openings and attachment arrangement to the required component
  • Ordering check: Confirm supplied quantity and whether any required gaskets, seals or related service components are included or sold separately

Fitment & Ordering

Verify part number 302563 against the parts diagram for your specific fuel tank model and assembly. The Evinrude and Johnson brand references alone do not establish tank compatibility, and this diaphragm should not be assumed interchangeable with a fuel pump diaphragm. Follow the applicable service instructions for installation and prescribed fuel-system checks. Replacement should not be assumed to correct a fuel-delivery problem without diagnosis. Contact C and O Marine Parts with your tank identification and assembly reference if you need help checking fitment or included components.
