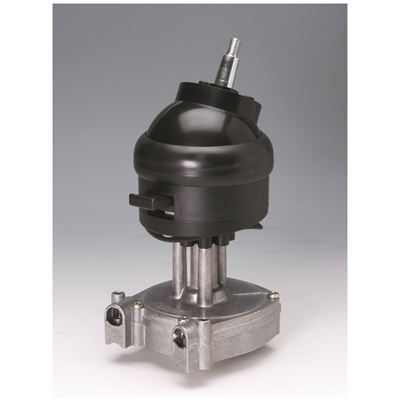

Uflex Rotary Tilt Helm

Tilt ranger of 48 and five locking positions,

Tilt device eliminates underdash movement.

Standard 3/4 tapered shaft-stainless steel.

All stainless steel cable output ends.

Made of corrosion resistant materials

Stroke 9'

Lock to Lock steering wheel turns: Approx 3.8

Maximum steering wheel diameter: 16"

Minimum Steering cable bend radius 7.9

Use with M66 or M90 cable.

Use with 8040185 (x52 Tilt mechanism

Not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat

X52 Tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SliverSteer and MasterDrive Steering system.

For boats faster than 50 MPH our hydraulic steering systems are recommended.
