OMC Evinrude Johnson Stator

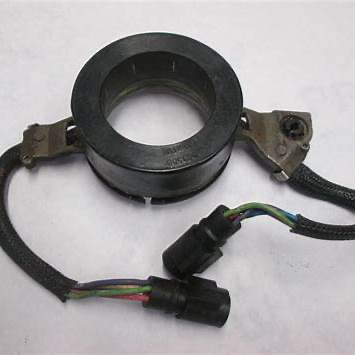

The OMC Evinrude Johnson part number 763782 refers to a timer base assembly, not a stator. This component is integral to the ignition system of certain Johnson and Evinrude 4-cylinder outboard engines, particularly those in the 120–140 HP range from the late 1980s to early 1990s.

🔧 Key Details

• Function: The timer base, also known as the trigger assembly, works in conjunction with the stator to control ignition timing by sending signals to the power pack.

• OEM Part Numbers: 763782, 0583508, 0778479

• Aftermarket Equivalent: CDI Electronics part number 133-3508

⚠️ Clarification

If you're seeking a stator for your outboard engine, the part number 763782 would not be appropriate. For 120–140 HP Johnson and Evinrude outboards from the late 1980s to early 1990s, a commonly used stator is:

• OEM Part Number: 0583410

• Aftermarket Equivalent: CDI Electronics part number 173-3410

This stator is a 9-amp unit compatible with 4-cylinder loop-charged engines.
