OMC Evinrude Johnson Rectifer

The OMC Evinrude Johnson rectifier is a crucial component in the charging system of many Johnson and Evinrude outboard motors. Its primary function is to convert the alternating current (AC) produced by the stator into direct current (DC), which is necessary for charging the battery and powering the boat's electrical systems.🔧 Function and Importance

• AC to DC Conversion: The rectifier transforms the AC voltage generated by the stator into DC voltage, enabling the battery to charge effectively.

• Tachometer Operation: The rectifier also provides the necessary signal for the tachometer. If the rectifier fails, it's common for both the charging system and the tachometer to stop functioning .

• Voltage Regulation: In some models, the rectifier is combined with a voltage regulator to maintain a consistent voltage level, protecting the battery and electrical components from overcharging.

⚙️ Common Rectifier Models

Several rectifier models are used across different Johnson and Evinrude outboard engines:

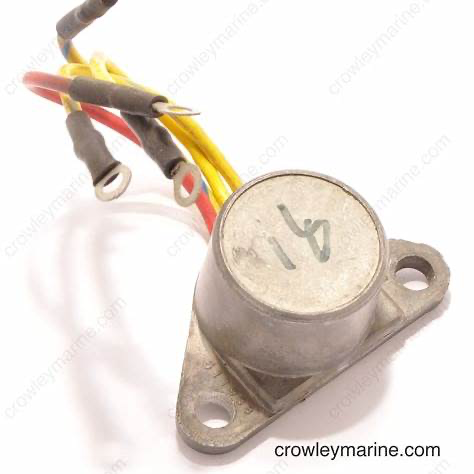

• Part #581778: A 3-lead rectifier suitable for various 2-stroke engines .

• Part #582399: A 3-lead rectifier that replaces OMC parts 580841, 582307, and 582399 .

• Part #585192: A rectifier/regulator assembly compatible with 1988–2001 120–140 HP outboards .

🔌 Wiring Overview

Typical wiring for a 3-lead rectifier includes:

• Two Yellow Wires: Connect to the stator's AC output.

• One Red Wire: Connects to the battery's positive terminal via the starter solenoid, delivering DC voltage for charging.

Proper wiring is essential for the rectifier to function correctly. For detailed wiring diagrams and discussions, refer to forums like iBoats .

⚠️ Maintenance Tips

• Regular Inspection: Check the rectifier for signs of overheating, corrosion, or physical damage.

• Ensure Proper Cooling: Some rectifiers are water-cooled; ensure the cooling system is functioning to prevent overheating.

• Monitor Electrical Performance: If you notice issues with battery charging or tachometer readings, the rectifier may be faulty and require replacement.

If you need assistance identifying the correct rectifier model for your specific outboard engine, please provide the engine's year, horsepower, and model number.
