Humminbird Mega 360
Humminbird Mega 360
Regular price
$2,097.00 CAD
Regular price
Sale price
$2,097.00 CAD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Share
- See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.
- To view everything down, out and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down and Landscape.
- Dynamic bait and lure tracking with MEGA Imaging® detail and an optimized sonar cone angle, providing ample sonar coverage without sacrificing the precision ability to target individual fish.
- Customizable color palettes designed to enhance detail and clarity of live sonar returns.
- Mounts on either side of trolling motor shaft.
- Mark and view waypoints on the MEGA Live Imaging sonar screen to remember productive fishing spots for next time, when paired with an optional GPS receiver with heading sensor (AS GPS HS).
- Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, connects to optional sonar source like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.
- Compatible Humminbird control heads: All APEX, SOLIX G3 and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).
- For optimal sonar performance, it is recommended that MEGA Live Imaging transducers be used with any Minn Kota Ultrex or Ultrex QUEST trolling motor equipped with Built-in MEGA Imaging.

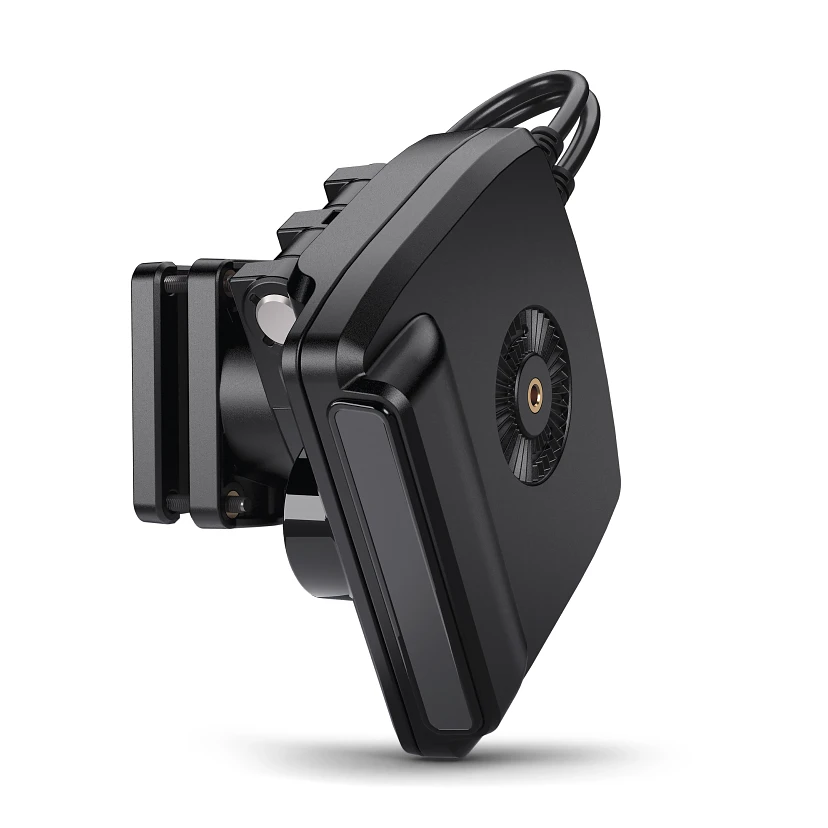

- Includes: MEGA Live Imaging transducer with adjustable mounting bracket, 10' power cable, 20' Ethernet cable and mounting hardware.
- Trolling motor and MEGA 360 Imaging accessories not included.
- 2-Year Limited Warranty
- Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N.
- Compatible with all APEX models and all SOLIX G2 and G3 models.
- Compatible with all Minn Kota Ultrex and Ultrex QUEST 45" - 52" trolling motor models

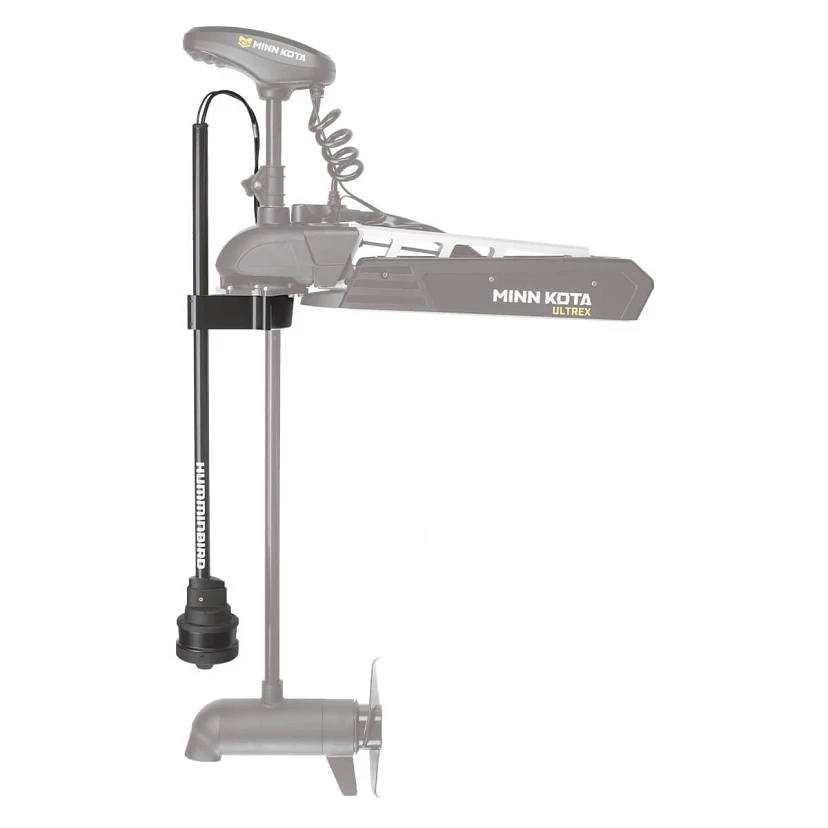

- What's Included: Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable, with 10' SOLIX transducer cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and an easy to mount MEGA 360 Imaging - Ultrex mounting bracket. (Minn Kota Ultrex trolling motor sold separately)
- The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
- Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
- Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.
- Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
- Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
- View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
- MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
- Once connected to a compatible HELIX G3N unit with MEGA Imaging+ or SOLIX G2 unit, MEGA 360 Imaging view can be shared with All SOLIX models, and all HELIX G2N and G3N models when connected via an Ethernet network.
- Transducer shaft length: 39 inches
- Weight: 12 Lbs
- Mounting Bracket material: Anodized Aluminum
- Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N
- Compatible with all APEX models and all SOLIX G2 and G3 models

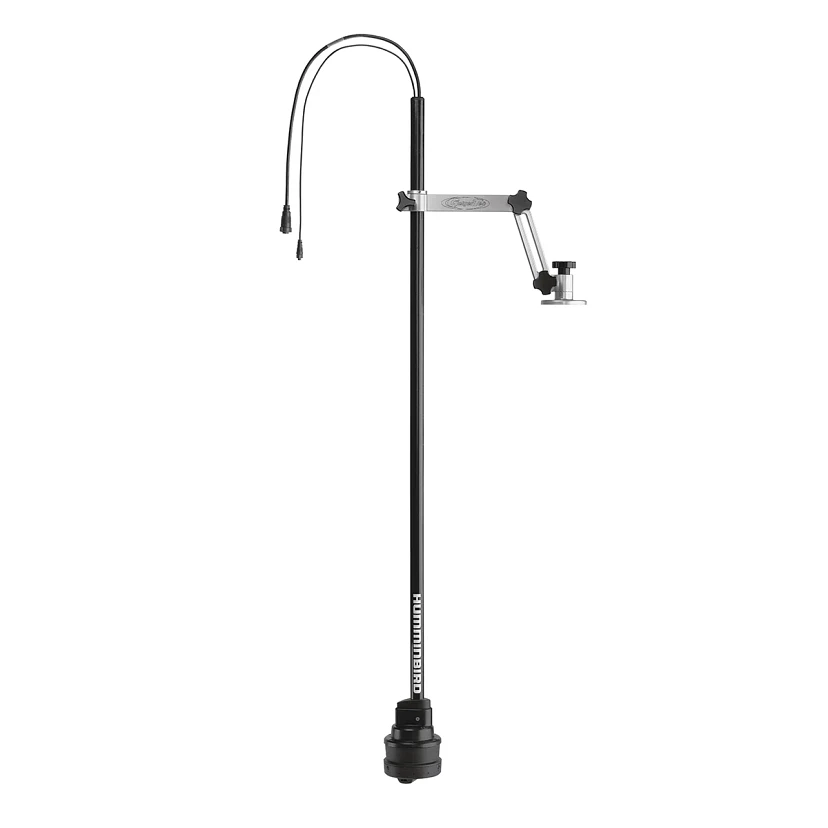

- What's Included: MEGA 360 Imaging transducer with attached power cable and transducer cable, 10' SOLIX transducer extension cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth retaining ring for shaft.
- The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
- Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
- Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.
- Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
- Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
- View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
- MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
- Compatible HELIX models can share the MEGA 360 Imaging view via One Boat Network to HELIX G2N and newer models with software version 2.180 or later.
- Compatible SOLIX and APEX models can share the MEGA 360 Imaging view to all other SOLIX or APEX models on the One Boat Network.
- Transducer shaft length: 50 inches
- Weight 16 lbs
- Mounting Bracket material: CNC-machined billet aluminum
- Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N
- Compatible with all APEX models and all SOLIX G2 and G3 models
- Compatible with Humminbird accessory mounting options: Ultrex MEGA 360 Hardware Kit and MEGA 360 Ice Adapter
- MEGA 360 Imaging provides two sonar source options; 360 Imaging mode and Side Imaging mode. Change from MEGA 360 Imaging sonar to using this transducer as a Side Imaging sonar source. If connected to an Ethernet network, these sonar views can be shared to other compatible Humminbird models on the network.

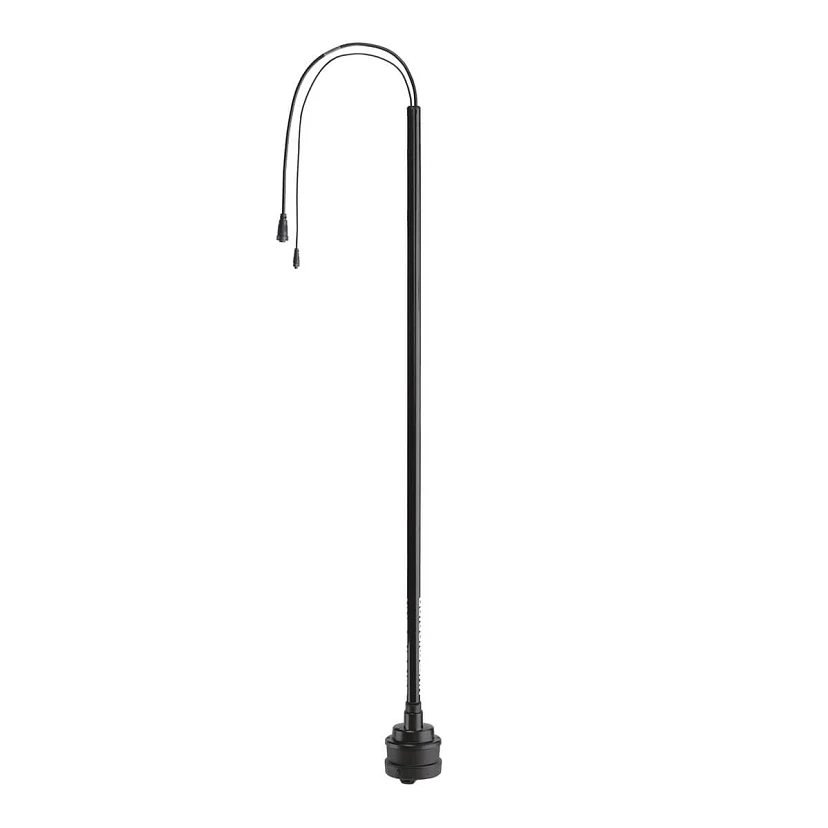

- Includes 50" MEGA 360 Imaging pod and shaft assembly with power and transducer cables, (1) 10' MEGA 360 power cable, (1) 10' HELIX transducer extension cable, (1) 10' SOLIX transducer extension cable
- Product will require accessory or 3rd-party mounting solution to achieve intended product performance
- 2-Year Limited Warranty
